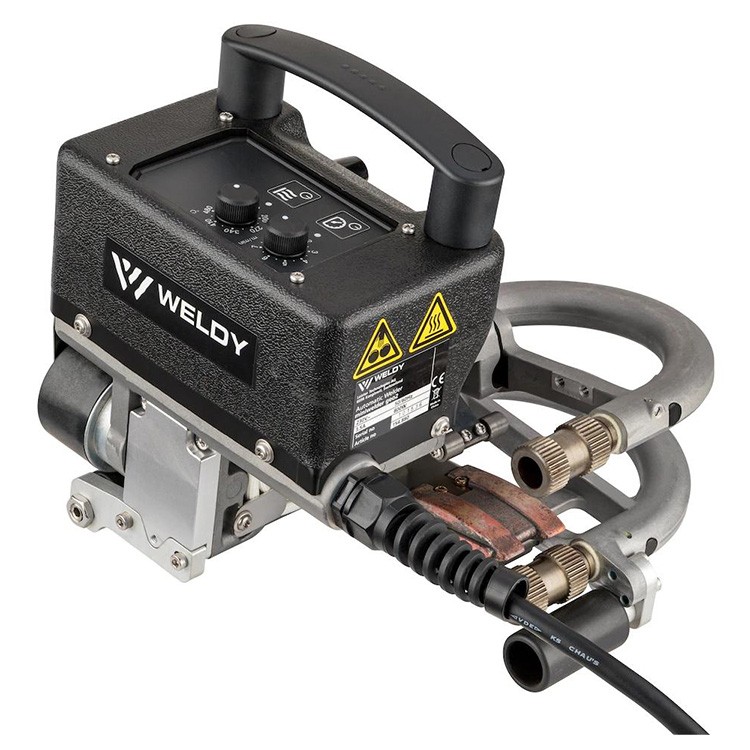

154.884 Miniwelder Geo2 230V/800W EU Plug Steel Wedge Geomembrane Welder

154.884 Miniwelder Geo2 230V/800W EU Plug Steel Wedge Geomembrane Welder

Category： Weldy Hot Wege Welder
Lightweight – less than 4 kg (8.8 lbs)
Revolutionary drive technology without a chain
Automatic wedge positioning
High welding speed
INQUIRY EMAIL

TECHNICAL DATA

VOLTAGE

120 V; 230 V

FREQUENCY

50/60 Hz

POWER

800 W

TEMPERATURE

60 - 480 °C

SPEED

0.4 - 7.5 m/min

WELDING TECHNOLOGY

Hot wedge

HOT WEDGE LENGTH

50 mm

HOT WEDGE WIDTH

36 mm

HOT WEDGE MATERIAL

Copper; Stainless steel

MAX. OVERLAP

100 mm

WELD SEAM WIDTH

2 x 12 mm / 2 x 0.47 in

ROLL MATERIAL

Steel roller sharp straight

LQS

DISPLAY

LENGTH

228 mm

WIDTH

228 mm

HEIGHT

170 mm

WEIGHT

3.9 kg

WELDING MATERIALS

CSPE; FPO; HDPE; LDPE; LLDPE; PE; PP; PVC

WEIGHT

3.9 kg

WELDABLE MATERIAL THICKNESSES

0.5 - 1.5 mm

PLUG

EU, 3 poles, 16A; US, 3 poles, 20A

APPROVALS

CB Certification; CE

PROTECTION CLASS

COUNTRY OF ORIGIN

Tags: 154884 Miniwelder Geo2 230V/800W EU Plug Steel Wedge Geomembrane Welder
